Santa Fe Kiva Fireplace Kit

Product Manuals

Options

Screen Door Tempered Glass Door Ceramic Glass Door Gas Conversion System Log Lighter Nichos Side Bancos Wood Storage Bin Kiva Wood Grate

Layout Plans

Wood Burning Models - Installation Manual Gas Burning Models - Installation Manual Homeowners Manual
Our Santa Fe kiva fireplace kit (requires a clear wall space of 3'3" out from each corner and an additional 18" by 18" high area for the hearth. Bancos can be installed on right or left side. All Adobelite woodburning kiva fireplaces are nationally approved and certified by Intertek Testing Service, which is accepted and recognized by all building commissions. In addition, all fireplaces can be easily converted to use gas burning ceramic logs and still maintain their wood burning capabilities (fireplaces installed to burn only gas cannot burn wood).   The standard kit includes firebox, frame & accessory kit (contains damper, combustion air kit, door frame, starter collar, refractory mortar, assembly hardware).
Corner Plan Layout

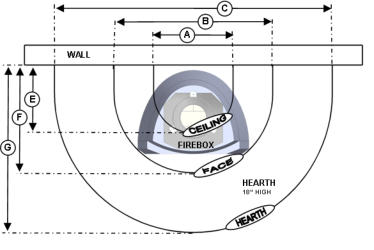

Flatwall Plan Layout

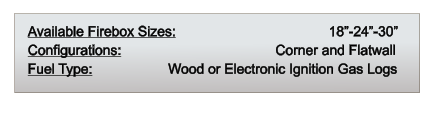

Available Firebox Sizes: 18”-24”-30” Configurations: Corner and Flatwall Fuel Type: Wood or Electronic Ignition Gas Logs
<<Back to All Fireplaces
24”  KIVA CORNER MODELS
MODEL
A
B
C
Orno
2’2”
3’2”
4’6”
Sant a Fe
2’0”
3’3”
 4’7”
Nav ajo
2’0”
3’9”
 4’7”
Zuni
2’0”
4’0”
5’4”
30”  KIVA CORNER MODELS
MODEL
A
B
C
Orno
2’6”
3’6”
4’10”
Sant a Fe
2’5”
3’8”
5’0”
Nav ajo
2’5”
4’2”
5’0”
Zuni
2’5”
4’2”
5’6”
18”  KIVA CORNER MODELS
MODEL
A
B
C
Ornito
2’0”
2’10”
4’1”
Santa Fe
2’0”
3’4”
4’7”
24”  KIVA FLATWALL MODELS
MODEL
A
B
C
Orno
2’0”
4’0”
6’7”
Sant a Fe
1’6”
4’0”
 6’7”
Nav ajo
1’6”
5’0”
 6’7”
Zuni
1’6”
5’0”
7’7”
G
4’0”
4’0”
4’0”
4’6”
F
2’8”
2’8”
2’8”
3’3”
E
1’8”
1’5”
1’5”
1’5”
30”  KIVA FLATWALL MODELS
MODEL
A
B
C
Orno
2’8”
5’0”
 7’5”
Sant a Fe
2’2”
5’0”
7’5”
Nav ajo
2’2”
6’0”
7’5”
Zuni
2’2”
6’0”
8’5”
G
4’4”
4’4”
4’4”
4’10”
F
3’0”
3’0”
3’0”
3’6”
E
 2’0”
 1’9”
1’9”
1’9”
