24”
KIVA CORNER MODELS
MODEL
A
B
C
Orno
2’2”
3’2”
4’6”
Sant
a Fe
2’0”
3’3”
4’7”
Nav
ajo
2’0”
3’9”
4’7”
Zuni
2’0”
4’0”
5’4”
30”
KIVA CORNER MODELS
MODEL
A
B
C
Orno
2’6”
3’6”
4’10”
Sant
a Fe
2’5”
3’8”
5’0”
Nav
ajo
2’5”
4’2”
5’0”
Zuni
2’5”
4’2”
5’6”
18”
KIVA CORNER MODELS
MODEL
A
B
C
Ornito
2’0”
2’10”
4’1”
Santa Fe
2’0”
3’4”
4’7”
24”
KIVA FLATWALL MODELS
MODEL
A
B
C
Orno
2’0”
4’0”
6’7”
Sant
a Fe
1’6”
4’0”
6’7”
Nav
ajo
1’6”
5’0”
6’7”
Zuni
1’6”
5’0”
7’7”
G
4’0”
4’0”
4’0”
4’6”
F
2’8”
2’8”
2’8”
3’3”
E
1’8”
1’5”
1’5”
1’5”
30”
KIVA FLATWALL MODELS
MODEL
A
B
C
Orno
2’8”
5’0”
7’5”
Sant
a Fe
2’2”
5’0”
7’5”
Nav
ajo
2’2”
6’0”
7’5”
Zuni
2’2”
6’0”
8’5”
G
4’4”
4’4”
4’4”
4’10”
F
3’0”
3’0”
3’0”
3’6”
E
2’0”
1’9”
1’9”
1’9”
Our Orno kiva fireplace kit is our smallest fireplace,
requiring a clear wall space of 2'10" out from each
corner and an additional 18" wide by 18" high area for
the hearth. Available in 18”-24”-30” openings, the Orno
can be installed indoors or outdoors, and is availble in
both wood burning and ceramic gas log burning.
All Adobelite kiva fireplaces are nationally approved
and certified by Intertek Testing Service, which is
accepted and recognized by all building commissions.
In addition, all fireplaces can be easily converted to
use gas-burning ceramic logs and still maintain their
wood burning capabilities (fireplaces installed to burn
only gas cannot burn wood).
The standard kit includes firebox, frame & accessory
kit (contains damper, combustion air kit, door frame,
starter collar, refractory mortar, assembly hardware).

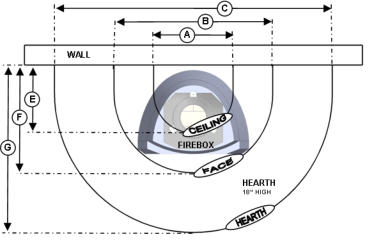

Corner Plan Layout
Flatwall Plan Layout
